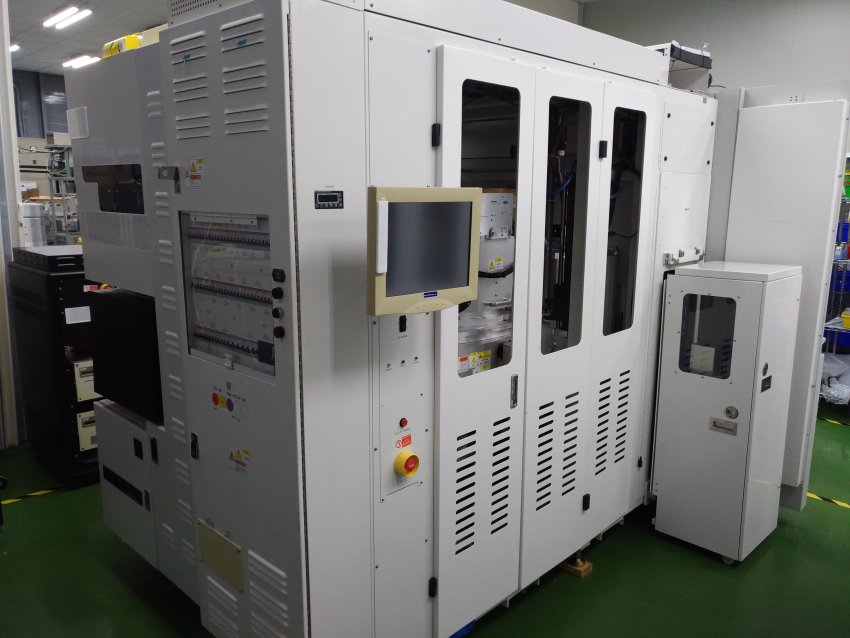

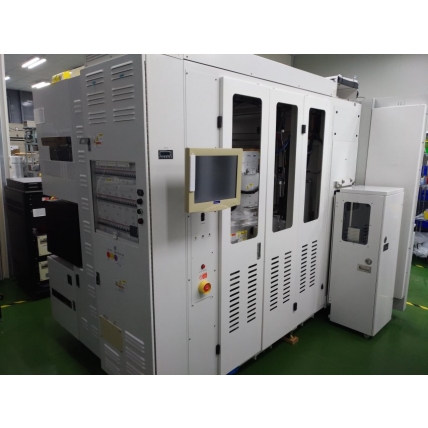

❒ Product: GAMMA 2130
❒ Condition: Used / SES warehouse, Hsin-chu
❒ Process : PR Strip
1. System Configuration:

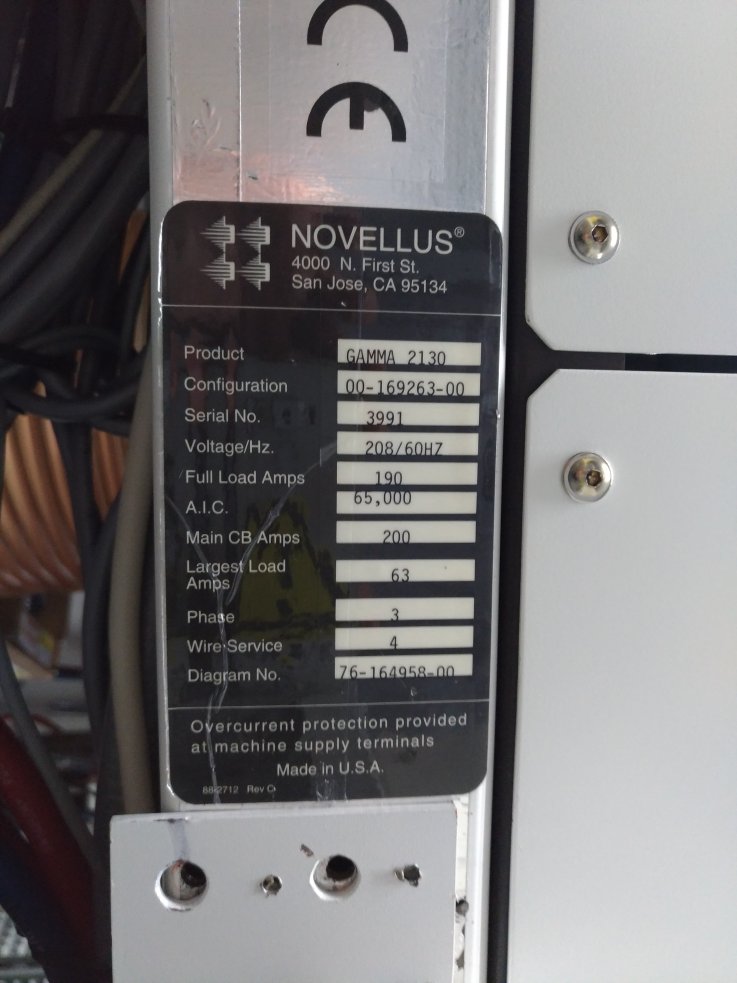

● Serial No: 3991
● Vintage : 2004
● Main System
● Load Port: Brooks Fixload TM V6

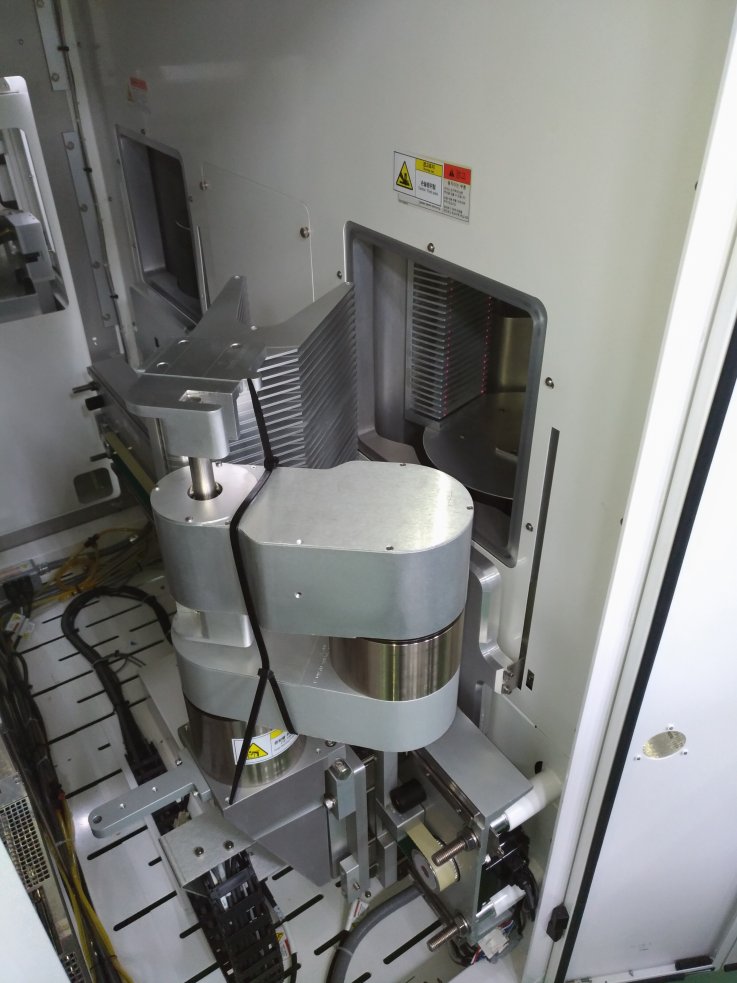

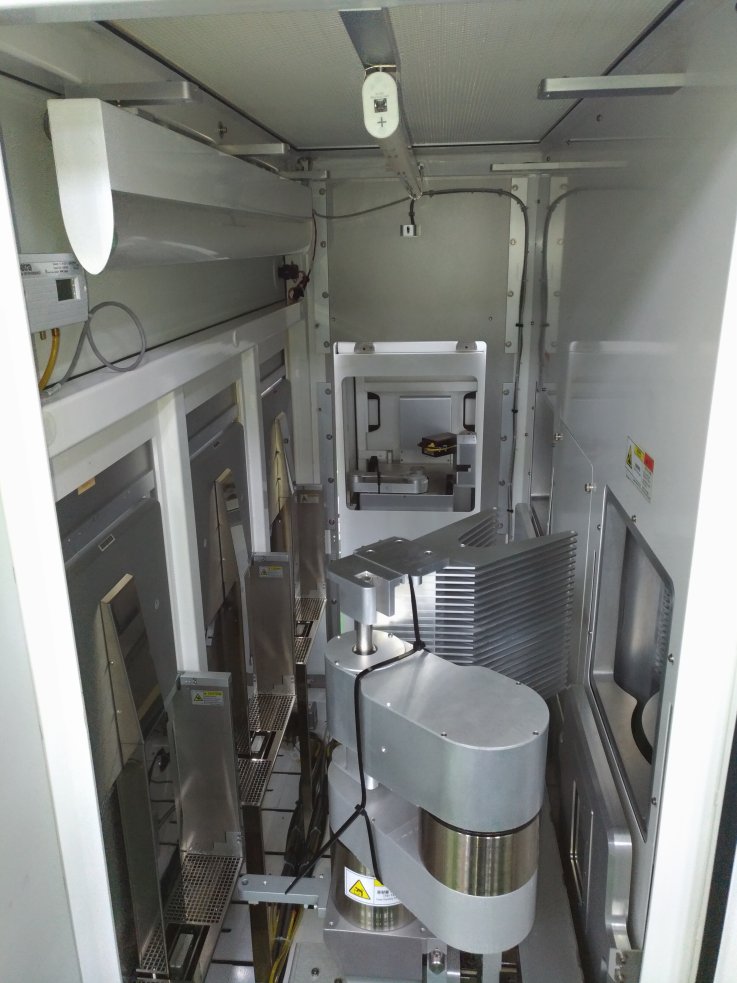

● EFEM Robot: 02-169208-00
● Aligner: Yaskawa

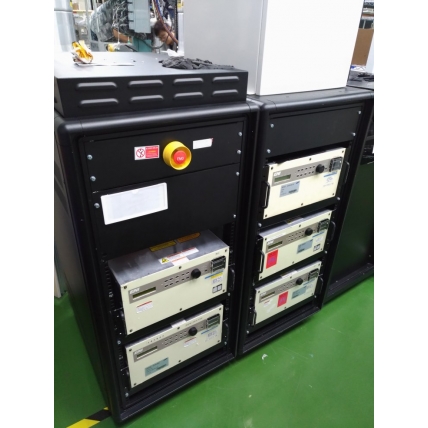

● RF Rack: Generator ENI GHW-50A-04 5ea
● UI Panel
● Light Curtain: KEYENCE
● Signal Cable (RF Cable Included)

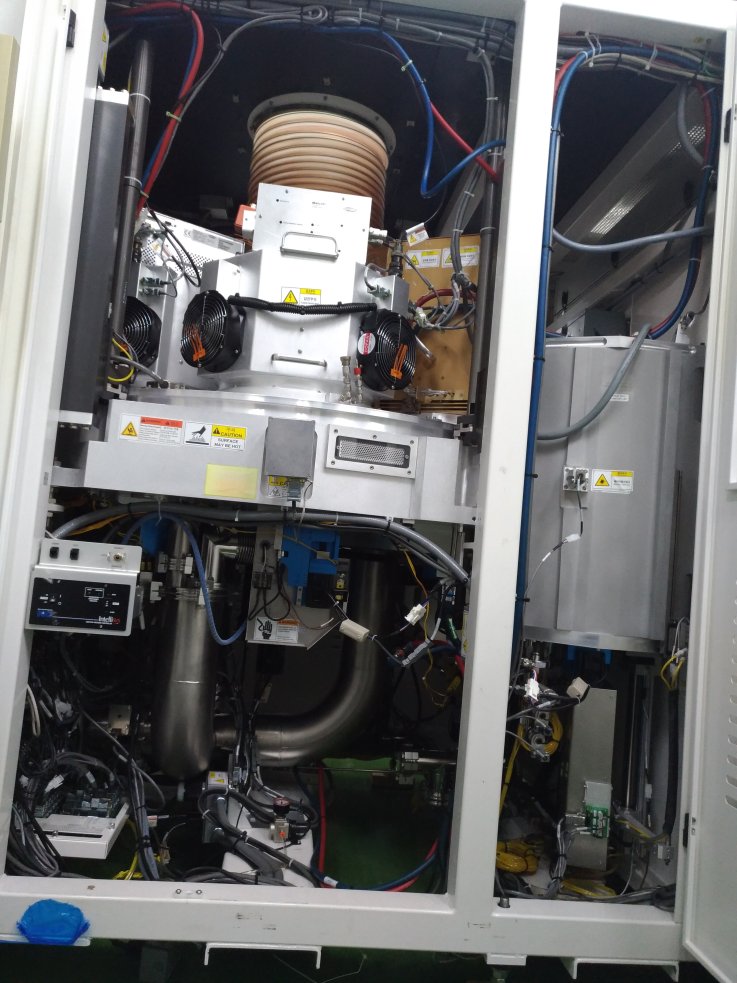

2. Process Chamber Configuration:

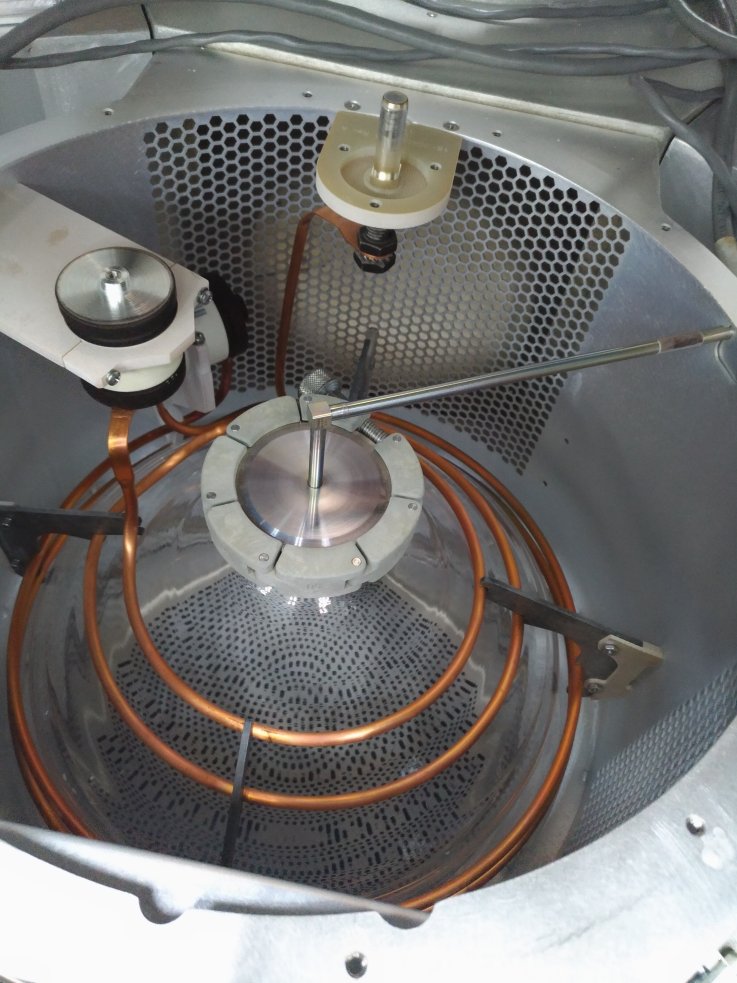

● Express type (upgrade Bell jar and Quartz tube)
● EPD: 4ea(#2,#3,#4,#5 Port)

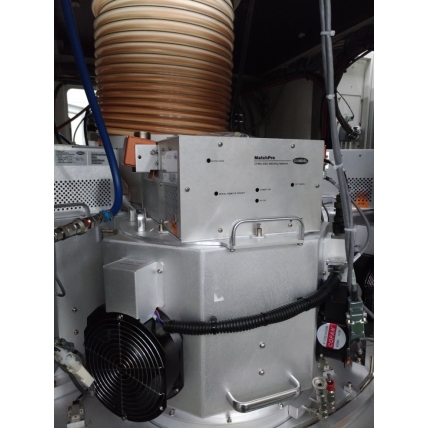

● RF Matcher: CPMX-3000 5ea
● RF Source: 02-352103-00 5ea

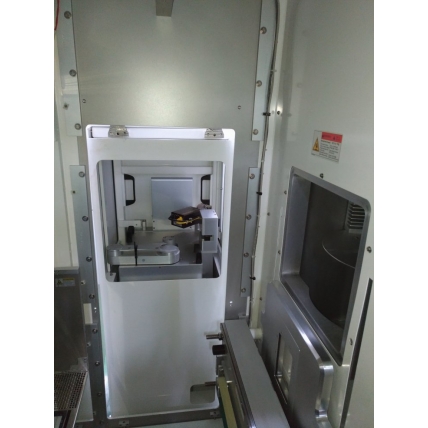

● Load/Unload Port
● HDIS Pedestal: #2, #3, #,1, #6
● Fixed Pedestal: #4, #5
● Stage #1: Preheat
● Yaskawa Spindle

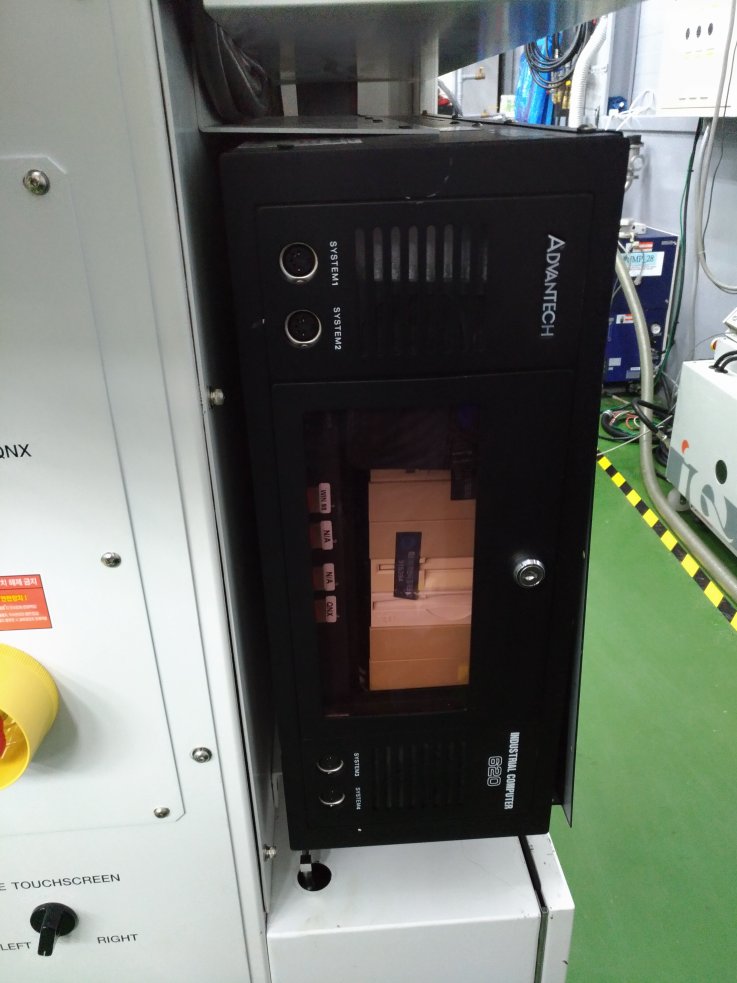

● Athenta Computer
● UI Computer
● Gate Valve: MDC ISO Valve
● Throttle Valve: NC
● Slit Valve: V-TEX
● Manometor: MKS 10 Torr

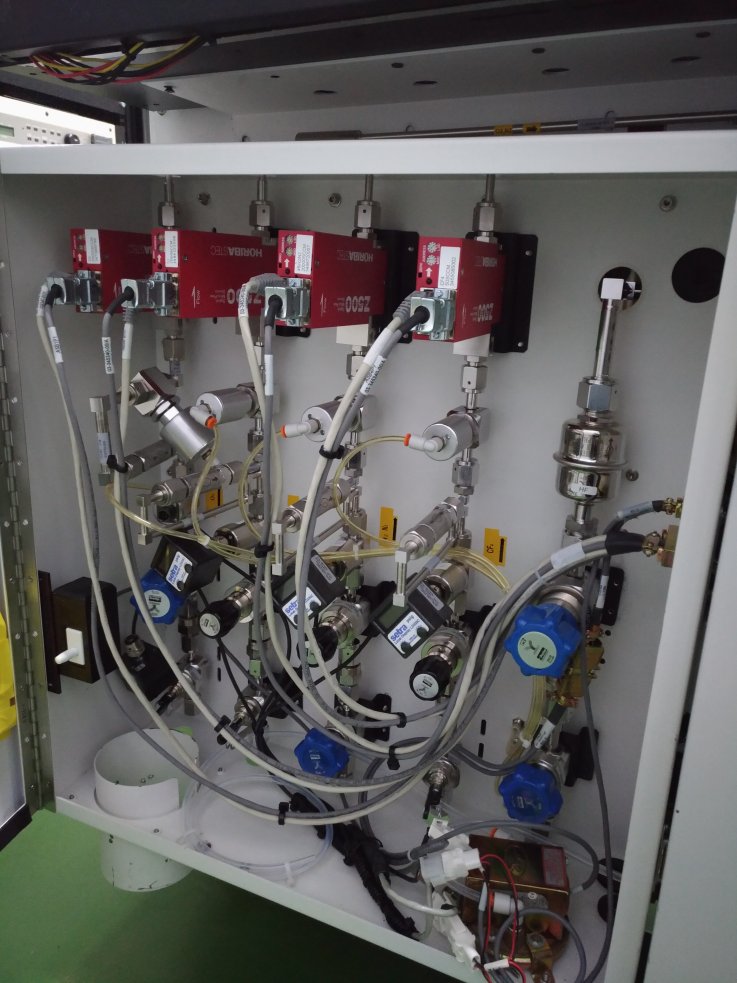

● Gas Box: MFC #1 Brooks O2, MFC #2 Brooks N2, MFC #3 Brooks H2N2, MFC #4 Brooks CF4
**********************************************************************************************************************************************
